Product Details

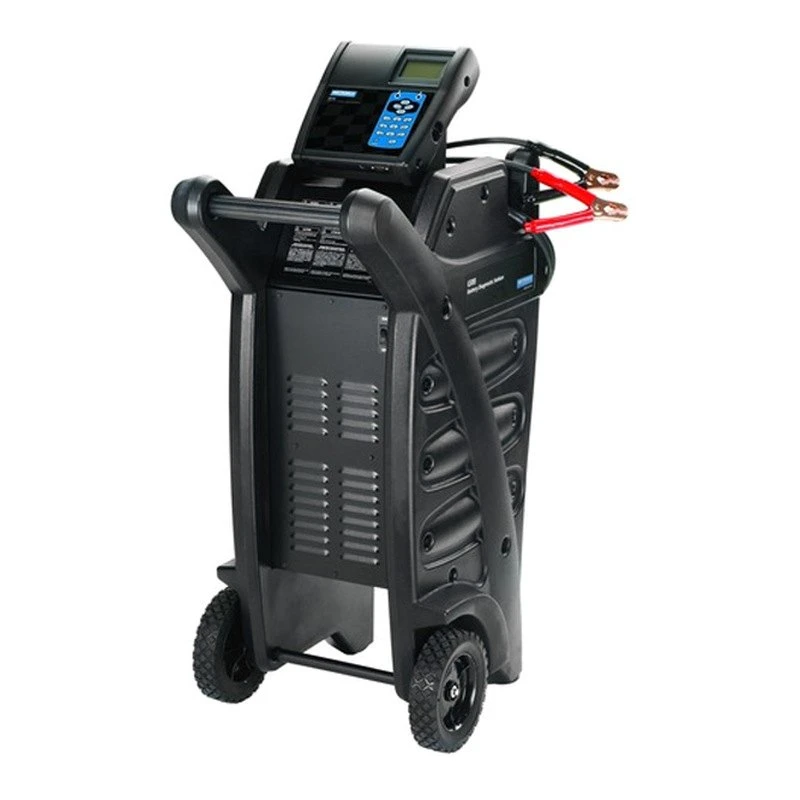

GR8 Series™ 12 V Wheeled Battery Charger and Electrical Diagnostic Station Kit by Midtronics®. The required warranty or service tool at most vehicle OEMS and battery resellers worldwide Midtronics GR8 Series Battery and Electrical Diagnostic Stations come with an innovative multitasking bridge that allows the user to charge one battery while diagnosing batteries and electrical systems on other vehicles. The result: greater value and productivity. Comprehensive capabilities and the multitasking feature make the GR8 an ideal solution for busy shops with limited space. Increase your service efficiency and overall customer satisfaction with the GR8 from Midtronics. This all-in-one portable battery diagnostic station provides intelligent, controlled and rapid charging combined with battery state-of-health analysis. Routine maintenance checks are performed quickly and efficiently by identifying batteries nearing the end of their useful life before they fail out on the road. Maximize service efficiency. The contoured rolling cart with detachable controller and optional integrated printer give you maximum flexibility for customer consultations anywhere in your shop. Diagnostic Charging quickly and efficiently assess the condition of batteries and only charge the good ones. Power Supply Maintain the battery state-of-charge during vehicle reflash programming and extensive service work. Jump-Start Mode 250 amp automated jump start routine.
Specifications:
| AC Voltage: 110 V, 60 Hz, 15 A dedicated circuit |
| DC Voltage: 12 V |
| Cranking Amps: 245 A |
| Charging Amps: 0 to 60 A |
| Peak Amps: 80 A |
| Weight: 49.5 lbs |
| Battery Test Cables: 10′ quick connect removable cables with Kelvin clamps |
| Charger Cables: 6′ quick-connect removable cables with heavy-duty Kelvin charge clamps |
| Display: 128 x 64 pixel Graphics, Backlit Display |
| Charging Voltage: Up to 17 V, 0.1 V resolution |
| Temperature Measurement: Controller IR Sensor: -20°F to 200°F; Charger Clamp Sensor: -20°F to 200°F |
| Languages: English, Spanish, French Canadian |
| Battery Test Range: 100 to 3000 CCA 100-1000 A (DIN); 100 to 3000 CA 100-3000 A (SAE); 100 to 3000 MCA 100-1000 A (IEC); JIS by Number 100 to 3000 A (EN) |
Features:
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability
Includes:
- (1) GR8 Diagnostic Charger with Built-in Cart
- (1) Removable Controller with Integrated Printer
- (1) Wireless Multi-Tasking Unit
- (1) Two Serial Cables, 6′ Charging Cables
- (1) 10′ Test Cables
- (1) Clamp
- (1) Lead Stud Adapters
