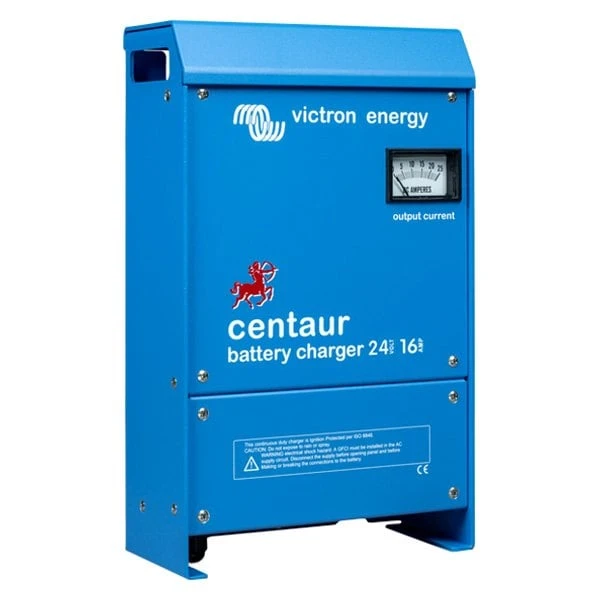

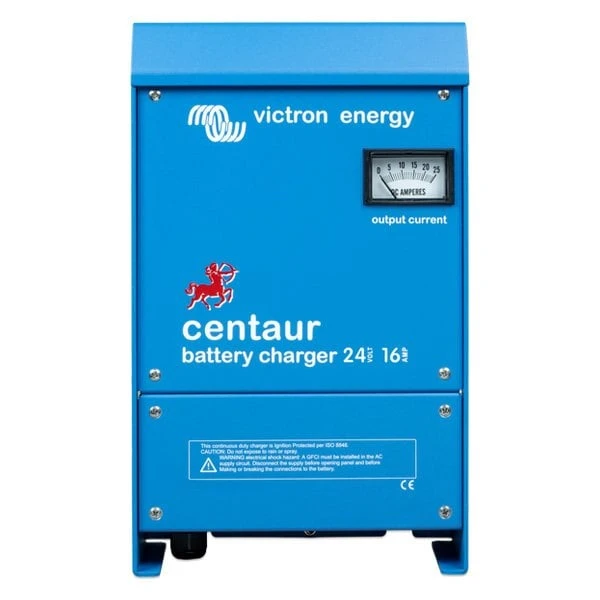

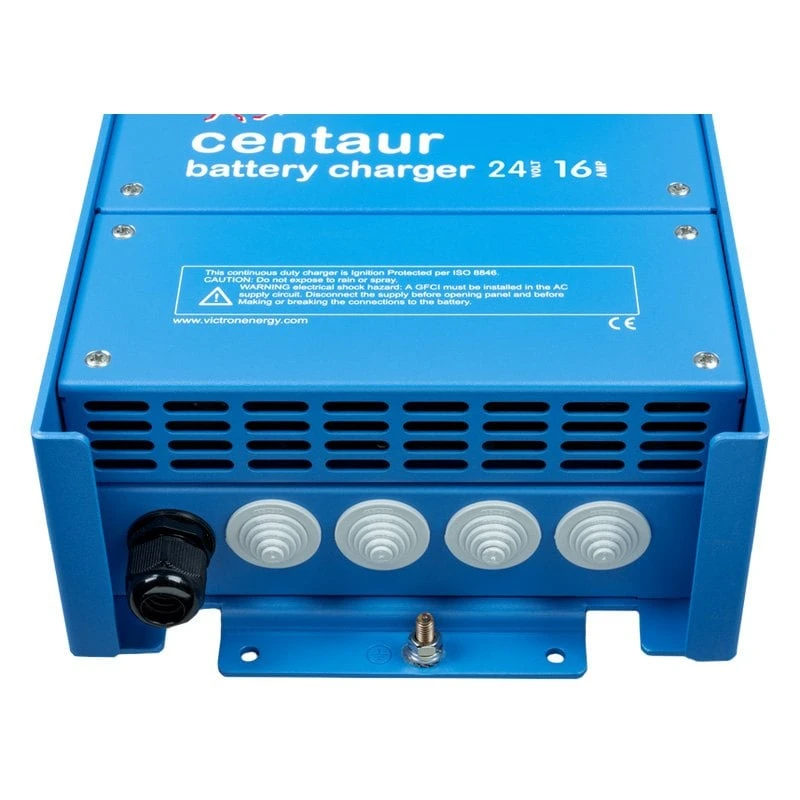

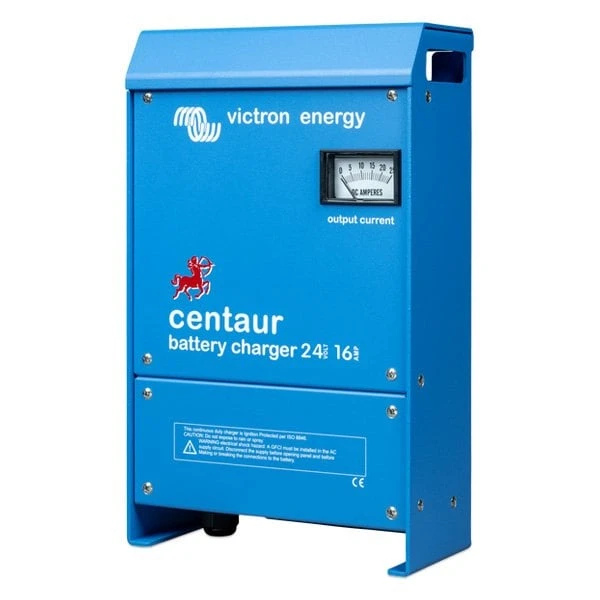

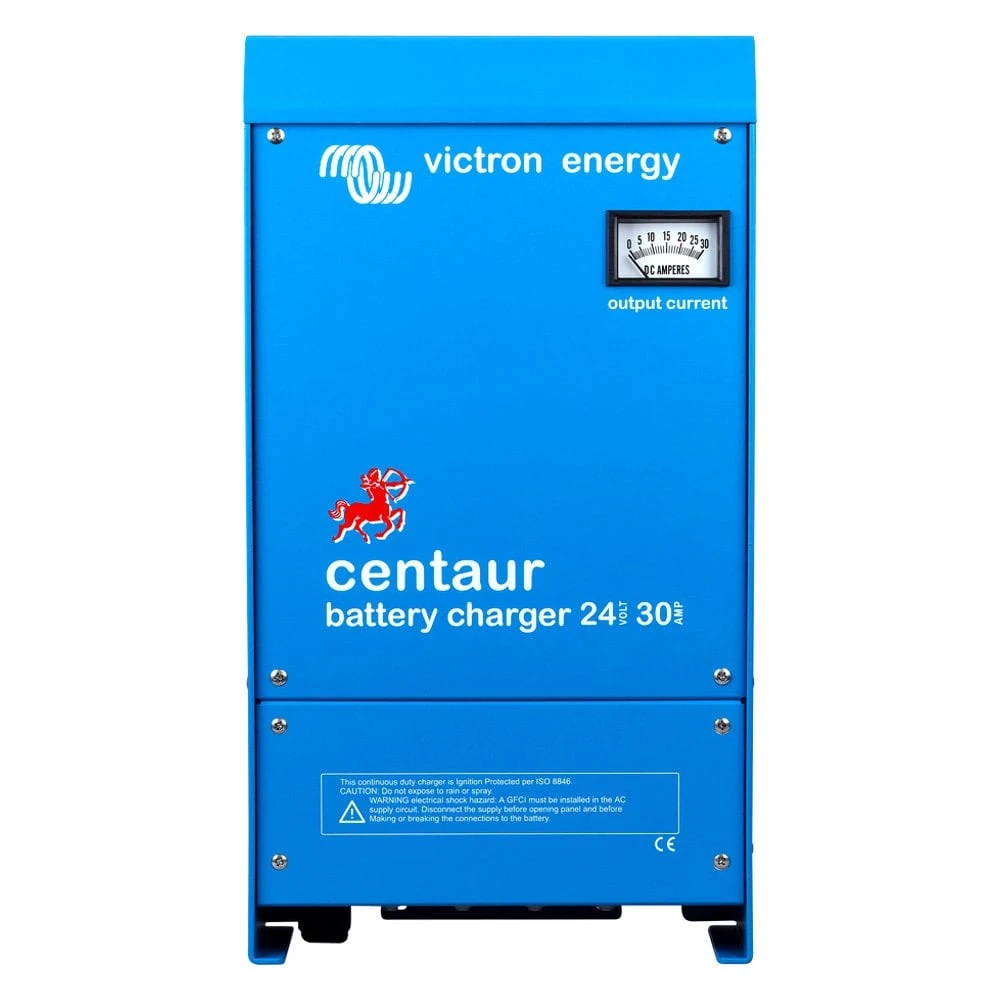

Victron Energy® – Centaur™ 24 V Automatic 3-Stage Battery Charger

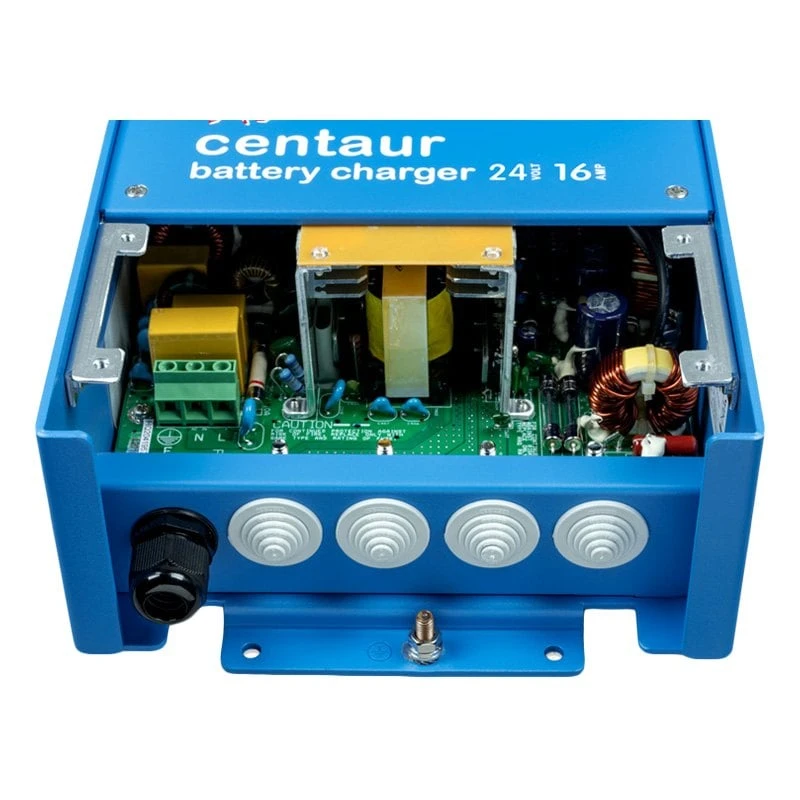

Centaur™ 24 V Automatic 3-Stage Battery Charger by Victron Energy®. Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air. Circuit boards are protected with an acrylic coating for maximum corrosion resistance. Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions. Universal 90-265V AC input voltage range and also suitable for DC supply (AC-DC and DC-DC operation). All models will operate without any adjustment needed over a 90 to 265 V input voltage range, whether 50 Hz or 60 Hz. The chargers also accept a 90-400V DC supply. Three isolated outputs to simultaneously charge 3 battery banks. Each output is capable to supply the full rated current. The Centaur charges at bulk rate until the output has reduced to 70 % of the rated A, at which a 4 hour timer begins. After the timed period the charger switches to float rate. An internal temperature sensor is used to compensate the charge voltage with – 2 mV/ºC (– 1 mV/ºF) per cell. A dip switch is available to select the optimum charge/float voltages for Flooded Lead-acid, Gel or AGM batteries.

Specifications:

Features:

• Designed to help to get your job done right
• Manufactured utilizing the highest quality materials
• Built to provide exceptional levels of durability

Victron Energy® products include sinewave inverters, sinewave inverters/chargers, battery chargers, DC/DC converters, transfer switches, battery monitors and more. Victron Energy has a strong, unrivalled reputation for technical innovation, reliability, and build quality. Victron Energy products are widely considered to be the professional choice for independent electric power.
